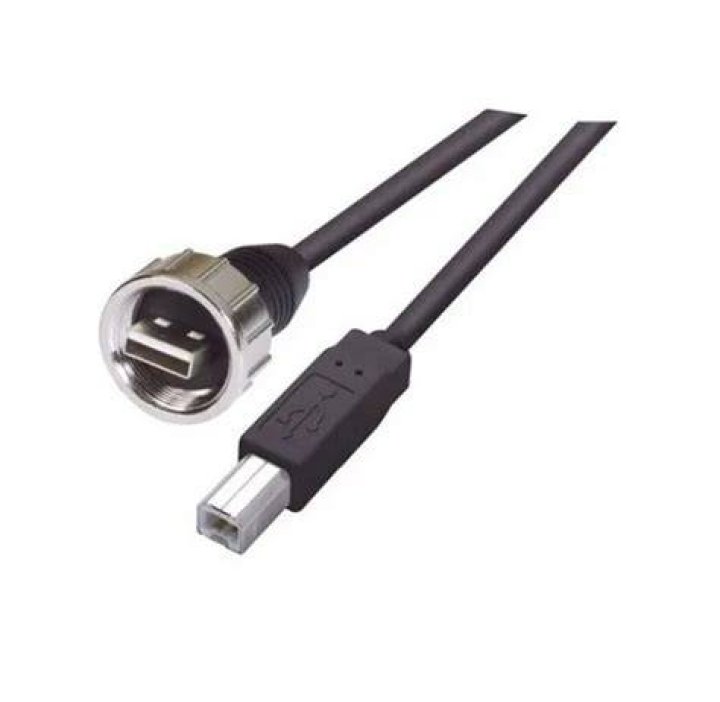

Are USB cables shielded?
Ava Mcdaniel updates
Most entry-level "USB 2.0" cables that are commercially available, although sometimes sold for more than $10, are not shielded, or are not well shielded, which is about the same. Often, the cable itself is shielded, but the connectors are not.
.
Also asked, does shielded cable need grounded?
In practice, the purpose the shield is to conduct to ground any of the noise it has picked up. The cable shielding and its termination must provide a low-impedance path to ground. A shielded cable that is not grounded does not work effectively.
Beside above, is USB shield connected to ground? The recommendation from FTDI and the USB Spec says that, at the device end, the USB shield should not be connected to the signal ground. But they recommend connecting the USB shield to the device chassis - assuming the chassis is not connected to the signal ground.
Simply so, what is USB shield?
The Arduino USB Host Shield allows you to connect a USB device to your Arduino. The Arduino USB Host Shield allows you to connect a USB device to your Arduino board.
What is a USB cable made of?
The connectors at either end of a USB cable are typically made of brass (a copper and zinc alloy) plated with nickel, though some are also gold plated. The "A" stream is the connector that plugs into the computer, while the "B" stream goes to the device.
Related Question Answers
Do you ground both ends of a shielded cable?
The cable shield works best when the signal lines are completely surrounded by a conductive "tunnel" that is completely at ground potential. That means it should be grounded at BOTH ends (grounded at one end means the other end is similar to an antenna at some frequencies).How do I know if my cable is shielded?
Look at the two wires where they disappear into the rubber of the cable. If the ground goes all the way around the inside of the cable in a braid then it most likely is shielded. If you only notice two of the same type of wire (single strand) and both are rubber covered then it most likely isn't shielded.Why do you need shielded cable?
Shielded Cable: When To Use. This is why data and signal cables are usually protected with insulated conductors and wrapped with a conductive layer. Shielding reduces electrical noise and reduces its impact on signals and also lowers electromagnetic radiation. Shielding prevents crosstalk between cables near each otherHow do you ground a shielded cable?
Signal cablesThe best way to wire shielded cables for screening is to ground the shield at both ends of the cable. Traditionally there existed a rule of thumb to ground the shield at one end only to avoid ground loops. Best practice is to ground at both ends, but there is a possibility of ground loops.Should power cables be shielded?
Power Cord ShieldingShielding a power cable is unadvisable. There is some benefit to shielding if you are trying to protect unshielded nearby unshielded interconnects from the fields generated by the cord itself.Why are ground loops bad?
Ground loops are a major cause of noise, hum, and interference in audio, video, and computer systems. Wiring practices that protect against ground loops include ensuring that all vulnerable signal circuits are referenced to one point as ground.How do you test for ground loops?
To test for a ground loop:- Set your volt meter to the most sensitive setting.
- Disconnect the camera you want to test.
- Place one contact on the case (Try to use a screw on the case to ensure grounding)
- Place the other contact on the outside of the connector.
What is the difference between shielded and screened cable?
While even unshielded UTP cables reduce some EMI, shielded STP cables more effectively block interference. Shielded Cat5 and Cat6 cables are augmented with a thin foil that serves to block EMI. UTP, on the other hand, actually provides faster transmissions in the absence of EMI.How do you make a USB A to USB a cable?
- Step 1: Materials and Tools. You need:
- Step 2: Take Apart the USB Cable. Take the usb cables and cut the ends.
- Step 3: Solder Time. Solder the wires of the USB cables between them.
- Step 4: Done! Now you have your male to male A-A USB cables, enjoy it.
- 4 Discussions. Mr Tripps.
What is USB ID pin used for?
In this micro USB AB connector the ID pin is used to signal the master of slave function. The pin numbering for the micro USB connectors is the same as for the mini USB connectors. The only difference is that for the micro USB AB connector the ID pin now has a function assigned to it.What are the types of USB connectors?
USB Connectors- USB connectors come in two flavors: host and peripheral.
- USB-A female is the standard "host" connector type.
- USB-A male is the standard "peripheral" connector type.
- USB-B female is a standard for peripheral devices.
- USB-B male is almost exclusively found at the end of a cable.
What are the different types of USB connectors?
Here are the most common types.- USB-A. This is the standard connector, found on one end of almost every USB cable.
- USB-B. This is an older connector that's not used nearly as often nowadays.
- Mini-USB. As the name suggests, this is a smaller connection type that's good for mobile devices.
- Micro-USB.
How many types of USB connectors are there?
Here are the six most common types of USB cables and connectors:- Type-A: The standard flat, rectangular interface that you find on one end of nearly every USB cable.
- Type-B: An almost square connector, mostly used for printers and other powered devices that connect to a computer.
