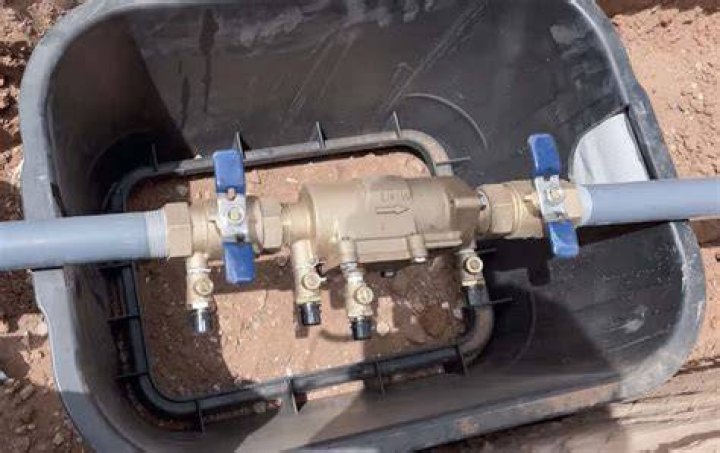

Backflow prevention devices with atmospheric vents or ports shall not be installed in pits, underground, or submerged locations. Backflow preventers shall not be located in an area containing fumes that are toxic, poisonous, or corrosive..
In this way, where is backflow preventer installed?
Backflow preventer installation higher than 5 feet: The device must be installed lower than 5 feet from the ground to allow field testing, maintenance and repair to be done in optimum and safe conditions for the tester.
how high does a backflow preventer need to be? Backflow preventers installed inside must be a minimum distance of twelve (12) inches above the floor, and no higher than four (4) foot above the floor, with adequate clearance around the backflow preventer for testing and/or repair.
Regarding this, do I have a backflow preventer?
The key to preventing backflow is to have a properly installed, maintained, and inspected backflow prevention device as part of your culinary water system. The answer is: you need backflow prevention if you have a culinary water connection that may be used to supply a sprinkler system.
Can I install my own backflow preventer?
If the backflow installation is new, then a plumbing permit is required. If you are simply replacing an existing backflow and it is like-for-like with no changes to the plumbing, then no, a plumbing permit is not required.
Related Question Answers
How much does it cost to install a backflow preventer?
Cost to Install or Replace a Backflow PreventerOn average, backflow preventer installation costs about $300. Most homeowners pay between $135 and $1,000 depending on the size and type of the system. The device itself ranges from $35 to $600, while professional labor costs between $100 and $400.What is a backflow device and where is it located?
Another common location for a backflow preventer is the connection of a fire sprinkler system to a water main, to prevent pressurized water from flowing from the fire suppression system into the public water supply.Where are backflows located?
We recognize change is hard. But the best practice for the location of the backflow prevention assembly is outside the building, above ground, and in an ASSE 1060 enclosure. Although there are many cities supporting the need for above ground standard details, it's not nearly enough.Which part of a sink prevents backflow of dirty water?
The air space between the floor drain and the drainpipe of a sink is an example. An air gap is the only completely reliable method for preventing backflow. Unwanted reverse flow of contaminants through a cross-connection into a drinkable water system.What is the difference between a check valve and a backflow preventer?
A backflow preventer protects your potable water. A check valve controls flow but it is not absolute. A check valve is not an appropriate substitute for a backflow preventer.Can a backflow preventer cause low water pressure?
If every fixture in the house has low water pressure, the cause may be corroded piping, a restriction of the line due to a failed pressure relief valve (PRV) or backflow preventer, low municipal water flow or a valve partially closed. If the pressure is below 20 PSI, contact your local water supplier.Can you install a backflow preventer vertically?
There are backflow preventers that can be installed horizontally, vertically (up or down) and other orientations that can make an installation easier. The key point to realize however is that they can only be installed in the orientation that the approval agency has determined they will work in.Who is required to have a backflow preventer?
Customers who have an irrigation system that uses potable (drinking) water or an auxiliary water source that is not connected to a JEA irrigation meter are also required to have a backflow preventer installed on their system.Do I need a backflow preventer on my garden hose?
The purpose of a backflow preventer on a garden hose spigot is to prevent tainted water from entering the drinking water system. Like most things in this world a backflow preventer will break down over time. It will either start leaking or in some cases it won't let water even through the hose spigot at all.Does a sprinkler system need a backflow preventer?
Why You Need to Install a Backflow Preventer on Your Lawn Sprinkler System. However, they can backflow and result in contaminated water entering into your home's supply of drinking water if a backflow preventer is not installed.What happens when a backflow preventer fails?
Some of the most common problems that could cause your backflow preventer to fail include: Faulty first check valve. The first check valve in a reduced pressure backup preventer opens up at certain water pressures, allowing the water to then pressurize the space between the first and second check valves.Is a vacuum breaker a backflow preventer?
A vacuum breaker, commonly referred to as a backflow preventer, is a device that prevents the potable water in your home, and possibly even your neighborhood, from getting contaminated.Is a double check valve the same as a backflow preventer?
The main thing to take away from this is that both backflow prevention device types perform the same function when they are operating properly, but only the RPZ is designed to protect the public water supply by disposing of any backwards-flowing water if any of the check valves or the relief valve fails.What is a testable backflow preventer?
A backflow preventer is a mechanical device that prohibits a backflow of contaminants from getting into. the drinking water. The principal types of testable backflow preventers used for medium to high hazard. processes include: reduced-pressure principle assemblies, double check valve assemblies and pressure.When should you use a backflow preventer?
Most backflow preventers are used to keep unsafe water from reversing flow and entering the clean water supply. Backflow preventers can be as simple as a single check valve that closes when water flow reverses.What is a double check valve backflow preventer?
A double check valve or double check assembly (DCA) is a backflow prevention device designed to protect water supplies from contamination. It consists of two check valves assembled in series.Does a backflow preventer reduced pressure?
A Reduced Pressure Zone (RPZ) lets you know that the valve is working properly. RPZ backflow preventers consist of two independent check valves. Backflow preventers work by letting water flow through them in one direction, but prevent water from flowing back through them in a reverse direction.
