How do you calculate chain pitch?

The pitch of a chain refers to thedistance between its drive links. It is determined by measuring thedistance between any three consecutive drive links and dividing bytwo. Example: 3/4" divided by 2 = 3/8". Sometimes pitch isexpressed as a fraction: 3/8" and sometimes it is expressed as adecimal: .

Keeping this in consideration, how is chain measured?

Chain (unit) The chain is a unit of lengthequal to 66 feet (22 yards). It is subdivided into 100 links or 4rods. There are 10 chains in a furlong, and 80 chainsin one statute mile.

Secondly, what is the pitch of a chain? The pitch of a chain refers to the distancebetween its drive links. It is determined by measuring the distancebetween any three consecutive drive links and dividing by two.Example: 3/4" divided by 2 = 3/8".

Considering this, how do you measure a Go Kart chain?

The easiest way to determine the pitch is tomeasure either a sprocket or a chain from yourkart. If it's #35 pitch it will measure approximately10mm (9.525mm = 3/8 inch), if it's #219 pitch it willmeasure approximately 8mm (7.774mm).

What do Chain numbers mean?

Number 41 chain is a narrow variation of number40. This chain number indicates the chain pitch.Here's how to decipher the pitch from the chain number. Thenumbers to the left of the right-hand digit refer to thechain pitch in eighths of an inch. For example: 140 = 14× 3.175 = 44.45 mm pitch, or 14/8 = 1.75 inches.

Is 420 chain the same as 40?

14 Tooth for 40, 41 and 420 Chain. Fits 35to 60 Pitch Standard Roller Chain. Fits 35, 40, 41,420 and 50 Chain.

Does changing sprockets affect speed?

Want the short answer? Gearing down by installing alarger rear sprocket (like with our YZ example) increasesthe final drive ratio and reduces top speed, but canincrease acceleration. Gearing up, like with a smaller rearsprocket, decreases the final drive ratio and adds more topspeed to your motorcycle or ATV.

What is a 520 chain?

The numbers associated with motorcycle chains --525, 530, etc. -- refer to their width. Even smaller 520chains with reduced weight can hold strong on more powerfulbikes. This means that riders can swap down from a 530 or 525chain to a 520 and shave a few pounds off theirride.

What is the pitch diameter of a sprocket?

STANDARD ROLLER CHAIN SPROCKET DIAMETERS 5/8 INCH PITCH - NO.50 .400 INCH DIAMETER ROLLER

No. Teeth	Outside Diameter	Pitch Diameter
8	1.884	1.633
9	2.093	1.828
10	2.299	2.023
11	2.504	2.219

What is the pitch of a sprocket?

Sprocket thickness is approximately 85-90% of theroller width. Plate thickness is 1/8th of the pitch, except"extra-heavy" chain, which is designated by the suffix H, and is1/32" thicker.

What size is a 520 chain?

Metric Dimensions

Chain	Pitch	Width
520	15.88mm	6.35mm
525	15.88mm	7.85mm
530	15.88mm	9.53mm
532	15.88mm	9.53mm

How do you measure chain strength?

So, to determine a chain grade,manufacturers must find the ultimate breaking strength.Then, divide that number by .224805 to determine ultimatebreaking strength in newtons. Next, take that number anddivide by the total area of two cross-sections of a single link.That number is the chain grade.

How do you size an anchor chain?

There are 3 main sizes in anchor chain:1/4 inch for smaller inshore boats, 5/16 inch for mid-sizeboats, and 3/8 inch for larger offshore boats. The standard rule ofthumb is 1 foot of chain per foot of boat.

What size is a 40 chain?

Chain standards

Size	Pitch	Maximum Roller Diameter
40	0.500 in (12.70 mm)	0.312 in (7.92 mm)
50	0.625 in (15.88 mm)	0.400 in (10.16 mm)
60	0.750 in (19.05 mm)	0.469 in (11.91 mm)
80	1.000 in (25.40 mm)	0.625 in (15.88 mm)

What is a chain measurement?

Chain is a length measurementunitChain is a unit of length or distance was usedfor land measurements in the Imperial (UK) and USmeasurement systems. One chain is defined as twentytwo (22) yards or sixty six (66) feet.

How much does chain cost per foot?

Your total chain link fence cost per footinstalled should range between $5 and $40 per linearfoot.

What is proof chain?

Proof coil is a general purpose, carbon steelchain. Common uses are for binding or tie downchains, tow chains and logging. This chaincomes in galvanized or self-colored and can either be sold by thedrum or by the foot. It is not to be used for overheadlifting.

What is the measurement of a link?

The link (usually abbreviated as "l.", "li." or"lnk."), sometimes called a Gunter's link, is a unit oflength formerly used in many English-speaking countries. Alink is exactly ?⁶⁶⁄₁₀₀ of afoot, or exactly 7.92 inches or 20.1168 cm.

What is surveyor chain?

Surveyor's chain, also called Gunter'schain, measuring device and arbitrary measurement unit stillwidely used for surveying in English-speaking countries. Anarea of 10 square chains is equal to one acre.

Is 41 and 420 chain the same?

The pitch will be the same but a 420motorcycle chain is narrower than an ANSI 40 or 41chain, so no it won't fit. A 425 or 428 chain, however,would fit just fine. Yes, it WILL fit as the rollers are smalleralthough the pitch and roller width are the same. This justmeans that it may sit lower on the sprocket.

What size is bike chain?

Chains come in ³⁄₃₂in (2.4 mm), ¹⁄₈ in (3.2 mm),⁵⁄₃₂ in (4.0 mm), or³⁄₁₆ in (4.8 mm) roller widths, theinternal width between the inner plates. ⁄₈ in(3.2 mm) chains are typically used on bikes with asingle rear sprocket: those with coaster brakes, hub gears, fixedgears such as track bicycles, or BMX bikes.

What's the difference between a 420 and 428 chain?

A 428 is a bit stronger than a 420 (likefor like). The 428 is thicker and pins are the same lengthapart but the rollers are a different diameter so one sizechain won't fit on another type sprocket.

What size is 415 chain?

#415 chain is also known as #43, 083, and 1/2" x3/16" chain. #415 chain has a 1/2" center to centerspacing between each pin, a 3/16" spacing between inner links, andis approximately 7/16" wide. Heavy-Duty #415 chain is bestsuited for motorized bicycles and tricycles, freight bicycles, andheavy-duty tricycles.

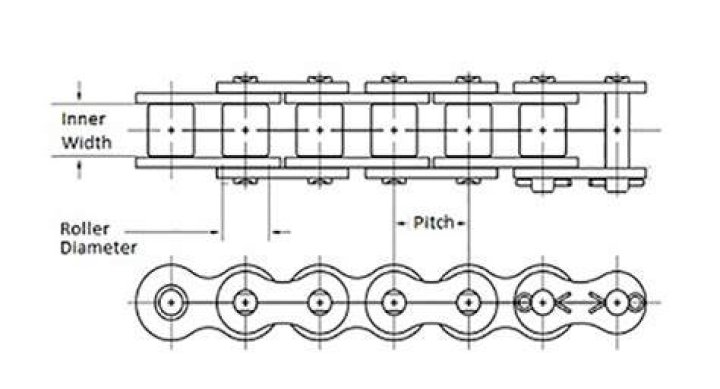

What is pitch in roller chain?

All chains are made to a givenstandard—with ANSI being the most common in the U.S. Eachchain is identified by “pitch,” whichrefers to the measurement from one roller-pin center to thenext roller-pin center of a given chain. ANSIchain pitch is always measured in 1/8”increments.
