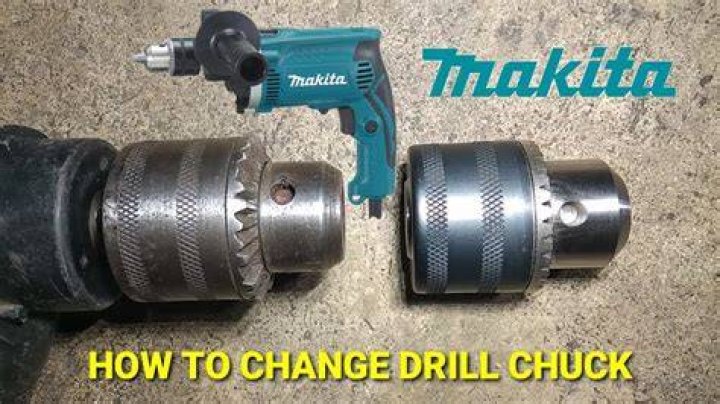

How do you change a chuck on a Skil drill?

Unplug the drill's electrical cord from the power outlet.
Rotate the chuck collar to open the chuck's jaws to their widest point, and set aside any drill bit that was in the chuck.
Insert an Allen wrench inside the opened chuck and into the screw in the back of the chuck.
Place the drill flat on a table.

In this way, how do you change a chuck on a drill?

Steps

Remove the screw in the center of the chuck. Loosen the jaws of the chuck to their widest extent.
Insert an Allen wrench into the chuck.
Set the gearbox to the lowest setting.
Tap the Allen wrench with a mallet.
Remove the chuck by hand.
Replace thread-locking fluid on the screw (recommended).
Mount the new chuck.

Also Know, how do you tighten a chuck on a drill? How to Tighten a Drill Chuck

Adjust the vise by rotating the collar until it is open slightly more than size of the shaft of the bit you are using.
Hold the bit in place and turn the collar clockwise until the vise clamps the shaft of the bit.
Grasp the collar firmly and continue to turn clockwise until it will no longer turn under heavy pressure.

Then, how do I change the chuck on my Bosch drill?

Hold the drill on its side on a workbench or table with the chuck hanging over the ledge. Tap the long end of the hex wrench with a mallet to rotate the chuck counterclockwise. This might take one or two solid taps to start the chuck rotating. Once the chuck rotates, unscrew the chuck from the drill by hand.

What is the chuck on a drill?

Drill Chuck and Chuck Keys The chuck refers to the adjustable mechanism that allows you to attach and tighten the drill bit. Drills used to have a key chuck that tightened the grip. Newer drills are keyless, with the drill or screwdriver bit inserted directly into the spindle and secured by hand.

What is a drill chuck key?

In drills and mills it holds the rotating tool whereas in lathes it holds the rotating workpiece. On a lathe the chuck is mounted on the spindle which rotates within the headstock. Often the jaws will be tightened or loosened with the help of a chuck key, which is a wrench-like tool made for the purpose.

How do you remove a chuck from a Ridgid drill?

Insert a 5/16 in or larger hex key into the chuck and tighten securely. Rap the hex key sharply with a Mallet in a clockwise direction. This will loosen the screw in the chuck for easy removal. Remove the hex key from the chuck then remove the chuck screw with a screw driver in a clockwise direction.

How do you remove a Jacobs Chuck from a drill?

Place the drill on a table with the chuck facing you and strike to end of the Hex wrench sharply 2 to 3 times counterclockwise (Fig. 5) with a soft-ended hammer or mallet. Continue to loosen and remove the old drill chuck from the spindle by hand. Remove the 1/4" Allen from the old chuck.

How do you remove the chuck from a Dewalt cordless drill?

No parts specified.

Step 1 Drill Chuck. Remove the interior chuck screw using a T15 Torx Screwdriver.
Insert the Allen wrench into the chuck and turn clockwise to tighten the wrench. Add a comment.
Hit the Allen wrench with a mallet or hammer to loosen and remove the chuck.
Remove the chuck from the drill.

Are drill chucks Universal?

Universal Drill Chucks. Seco universal drill chucks provide a simple, easy to use solution for holding drills. The compact design is compatible with clockwise and counterclockwise spindle rotation and allows the tool to be changed directly on the machine.

How do you remove a screw from a drill?

Insert a Phillip's Head screwdriver into the tip of the drill and turn the screw inside of the chuck counterclockwise. This should loosen it up enough to rotate the chuck. Once your chuck rotates again, replace the screw. Turn the chuck counterclockwise with a wrench if it's stuck.

How do you take the bit out of a Bosch drill?

Steps

Loosen the chuck. The chuck is piece on the end of the drill that loosens and tightens to hold the bit.
Remove the bit. Once you loosen the chuck, the drill bit that you currently have in the drill will start to wobble.
Set the bit.
Squeeze the trigger.
Engage the ratcheting mechanism if needed.

How do you measure a drill chuck?

How to Size Chuck Keys

Look closely at the chuck on the drill for the engraved numbers. The chuck size looks something like: 1/4, 3/8, 1/2 etc.
Measure the diameter of the hole on the side of the chuck in inches with a ruler.
Take these two dimensions to your local hardware store to make your selection.

How does a chuck work?

A drill chuck is a specialized clamp designed to hold drill bits in place while they are being rotated by the drill. Once a bit is inserted into the chuck, the jaws are tightened on the bit by rotating a threaded screw. The screw threads and the threads on the backs of the jaw pieces are on an angled surface.
