Bearings can be taken by sighting across a compass, using a hand bearing compass, relative bearings or by RADAR. The direction to the object sighted is recorded. When using cross bearings the fix is obtained by taking bearings on two (2) well defined – charted objects and plotting the observed bearings onto a chart..
Simply so, what is a cross bearing fix?
When using cross bearings the fix is obtained by taking bearings on two (2) well defined – charted objects and plotting the observed bearings onto a chart. A more accurate fix may be obtained by taking a third bearing on another well defined object.
Also Know, what is a crossed roller bearing? A crossed roller bearing, also called a crossed roller slideway, is effectively two sets of. bearings and races combined at right angles to each other. Cylindrical bearings or rollers mount along the length of a rail in a carriage.
Correspondingly, what does cross bearing mean?
Definition of cross bearings. : compass bearings of two or more points taken simultaneously to fix a position (as of a ship)
How do you find the bearings of a number?
Types of Bearings and Their Code in Bearing Number Thus, we can easily identify now that in case of bearing 6305ZZ, the first digit '6' means the bearing type is 'Single row deep groove ball bearing'. In case of Inch bearings, the bearing's first digit will be 'R'.
Related Question Answers
Which is the correct symbol for Labelling a running fix?
Label the Running Fix with an ellipse and "RFix" without underlining.How do you do set and drift?
This can be calculated by using the formula Speed = Distance / Time. Once an advance position has been plotted, then set and drift can be factored in. If there is a known set and drift, then the corrections can be applied to the Dead Reckoning position to then get an Estimated Position on a chart.What is position fixing method?
Position fixing or positioning is the branch of navigation concerned with determining the position of a vehicle or person on the surface of the Earth. Position fixing uses various visual and electronic methods including: Position lines and position circles. Celestial navigation. Radio navigation.What is lop in Ecdis?
232 (82), which concerns the use of lines of position (LOPs) on ECDIS. LOPs enable the ECDIS to be used in the event of a Global Navigation Satellite System (GNSS) failure; it also allows operators to monitor the accuracy of GNSS using ranges and bearings.Where are U joints located?
U-joints are found on each of the ends of the rear drive shaft, whereas CV-joints are found on front wheel drive cars.Are roller bearings better than ball bearings?
Ball bearings are commonly used in small wheels and hard drives, as well as other everyday applications, but are prone to deformation when under too much pressure. Unlike ball bearings, roller bearings are designed with heavy loads in mind. Also unlike ball bearings, roller bearings are not made to handle thrust loads.Where do we use ball bearings?
Arguably the most common type of bearing, ball bearings are used in a wide variety of products and applications. From hard drives to skateboards, ball bearings are designed to handle both thrust and radial loads. However, ball bearings are usually found in applications with smaller loads.How does a needle bearing work?
A needle roller bearing is a bearing that uses small cylindrical rollers. These rollers are used to reduce friction of a rotating surface. The function of a caged needle roller bearing is to support radial loads and rotational speeds. Here, a cage guides and retains the rollers.How does a slewing bearing work?
A slewing bearing or slew[ing] ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, a swing yarder, or the wind-facing platform of a horizontal-axis windmill.What is a bearing company?
A bearing is a machine element that constrains relative motion to only the desired motion, and reduces friction between moving parts.What does a roller bearing do?
Roller Bearings are a type of rolling-element bearing that uses cylinders (rollers) to maintain the separation between the moving parts of the bearing (as opposed to using balls as the rolling element). The purpose of a roller bearing is to reduce rotational friction and support radial and axial loads.Where are cylindrical roller bearings used?
Others are used in construction equipment, crushers, electric motors, blowers and fans, gears and drives, plastics machinery, machine tools and traction motors and pumps. Cylindrical roller bearings feature high radial load capacity because the rollers and raceway are in linear contact.What is the dynamic load rating of a bearing?
The basic dynamic load rating of a bearing with rotating inner ring and stationary outer ring is that load of constant magnitude and size which a sufficiently large group of apparently identical bearings can endure for a basic rating life of one million revolutions.How do you measure a bearing?

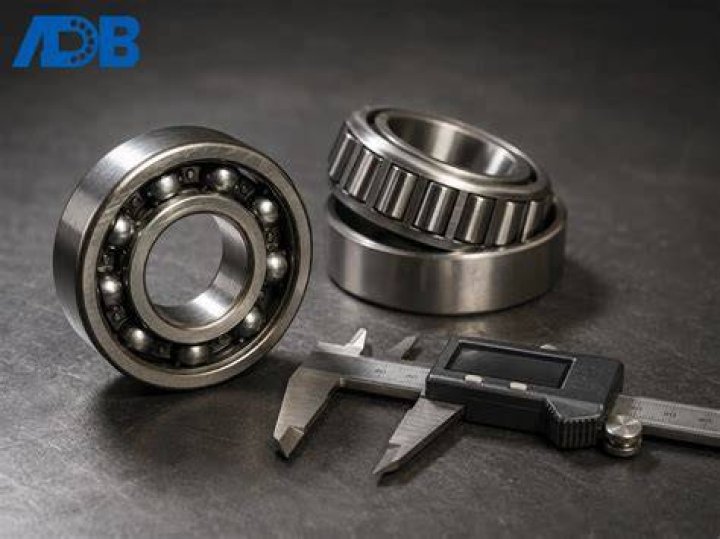

You can measure the dimensions of a bearing by using a vernier caliper like the one below or measuring accurately with a ruler. All bearings will have an inner diameter (ID), an outside diameter (OD) and width (W). Bearings are sometimes referenced by these dimensions, in that order: ID x OD x W.How do I know if my bearings are sealed?
When trying to decide whether a bearing is sealed using the AFBMA or SKF code, note the shields or seals section. If the bearing number uses the AFBMA code, look for "EE" (or "2RSI" for SKF) to determine if the bearing is sealed on both sides. This is the only way to identify whether a bearing is sealed.What do the bearing numbers mean?
The numbers, 10 to 19, are used for outer rings with 10 used to label the bearing with the minimum outside diameter. The numbers, 30 to 49, are used for inner rings with 49 used to label the inner ring with the largest bore diameter. Series number A series number is expressed by one, two, or three digits.How do you identify different types of bearings?
Grooves or raceways are cut into the inner and outer rings to guide the rolling element. These are the most common, yet diverse, bearing family. Therefore, there are five primary categories to know when you identify bearings: radial ball, cylindrical roller, spherical roller, tapered roller and needle bearings.What size is a 6203 bearing?
The 6203 17 mm Ball Bearing Inner Dimension 17mm X Outer Dimension 40mm X Width 12mm is an open style ball bearing designed for high rotational speeds and high dynamic loads.What do the numbers and letters mean on bearings?
The basic code consists of the bearing series, which indicates the type of bearing, and the bore number, which specifies the bore diameter. The bearing series can be made up of letters and/or numbers that designate the construction, diameter series, and in many cases the width series.
