How do you install a reworking electrical box?

building wire

Step 1: TURN OFF POWER AT THE CIRCUIT BREAKER BOX.
Step 2: MARK THE DRYWALL FOR THE NEW BOX.
Step 3: CUT THE DRYWALL.
Step 4: LOOSEN THE OLD OUTLET.
Step 5: FEED THE CABLE TO THE OLD BOX.
Step 6: CONNECT THE WIRES IN THE OLD BOX.

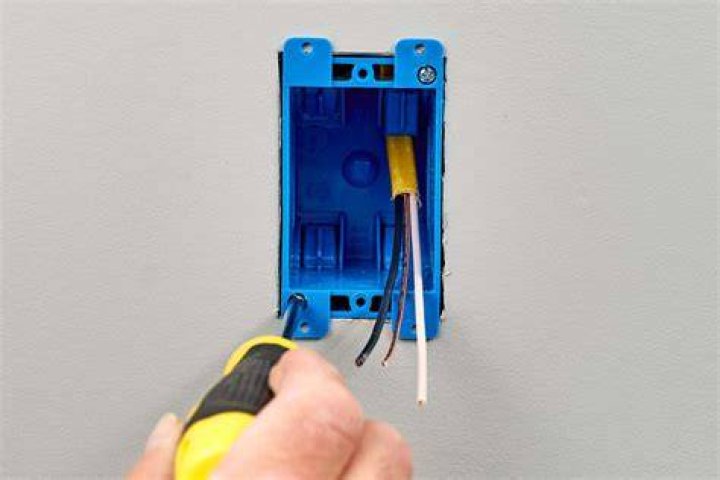

Step 7: MOUNT THE REMODELING BOX.
Step 8: WIRE THE NEW OUTLET.

Also asked, does a junction box have to be attached to a stud?

Most electrical boxes are attached to a stud before the drywall is even installed. When you add a new box to an old wall, we always try to put it in right next to a stud for solid attachment. Specialized hardware does exist to allow putting an electrical outlet or switch absolutely anywhere without reference to a stud.

Also, are outlets always on studs? Often times, locating studs is as easy as finding your electrical outlets and light switches. Standard outlets and light switches are fastened to studs. The standard space between studs is 16 or 24 inches, although in some homes, the distance between studs is less regular.

Besides, can you screw an electrical box to a stud?

Installing electrical boxes while studs and joists are exposed is a handy and simple solution for homeowners. To do this on your own, buy switch and receptacle boxes that meet local codes and are large enough for the wires they hold. It's easy to underestimate, so buy extra supplies.

How many wires can be spliced in a junction box?

Each conduit contains a red, blue and white conductor. The red, blue and white conductors are spliced inside the box. Since all six conductors are spliced inside the box, all six conductors are counted in a box-fill calculation.

How much weight can an old work ceiling box hold?

50 lbs

How do you install a ceiling light without a junction box?

Step 1 - Turn Off the Power.
Step 2 - Remove the Old Light Fixture.
Step 3 - Find Closest Stud.
Step 4 - Cut Out Hole for Junction Box.
Step 5 - Attach Junction Box to Stud.
Step 6 - Insert Wiring into Junction Box.
Step 7 - Wire the Light Fixture.
Step 8 - Attach Light Fixture to Junction Box.

How do you connect electrical wires to a junction box?

Part 3Connecting and Sealing the Wires

Twist together same-colored wires. Creating the electrical circuit is a matter of color-matching.
Use a wire nut to connect multiple wires.
Install the ground wire into a metal junction box.
Push all the wires into the box before sealing it.

What is the difference between old work and new work electrical boxes?

Whatever the material, electrical boxes can be loosely divided into two types: New work boxes, designed to be installed just after the wall is framed but BEFORE the surfaces are finished with drywall. Old work (also called retrofit) boxes, designed to be installed AFTER the walls are finished.

How deep is an electrical outlet box?

Single light fixture switches and outlet receptacles typically fit into standard rectangular boxes, also known as "single-gang" or "one-gang" boxes. They are generally 2 x 3 inches in size, with depths ranging from 1 1/2 inches to 3 1/2 inches.

How do you replace a junction box?

Follow the National Electrical Code (NEC) when replacing a junction box.

Turn the main breaker off in the panel box or, if you know which circuit is in the junction box, turn off the breaker to the circuit.
Remove the cover from the junction box you are replacing.
Remove all of the wire nuts from all of the connections.

What is a cut in box?

Cut-in boxes (also known as remodeling boxes) are the type of electrical boxes that you use when you are working with an already finished wall. Usually, the biggest problem that you are faced with when doing this kind of work is that different methods are used for installation depending on the type of cut-in box.

Do all light fixtures need a junction box?

Not all light fixtures require junction boxes because some have their own. When installing one of these fixtures, it's okay to feed the wire straight into the terminal box, make connections and screw the box closed. When feeding a cable into a fixture box, it's important to secure it with the clamp in the box.

Can I put a junction box in the ceiling?

Junction boxes, with blank covers are allowed above a suspended ceiling as it is not considered a closed space. Some boxes have clamps pre-installed, if not, you need to use a RX connector in the knockout. Hard to tell from your pics if they are installed. Also, an open hole in the j-box with no wire is not acceptable.

When would you use a junction box?

Whenever you splice wires together while installing residential circuitry, the electrical code requires you to enclose the connections in a junction box. This safety measure prevents fires that can occur when the wires overheat and also protects people from getting shocked by live wires.

How do you size an electrical box?

In this case, simply multiply your largest raceway size by 8, and that will give you the minimum length for your box.

Largest Raceway Size x 8 = Minimum Box Length.
(Largest Raceway Size x 6) + Sizes of Raceways on the Same Row.
Largest Raceway Size x 6 = Minimum Distance Between Raceways.

Can a junction box be covered by drywall?

Junction box covers must remain accessible; they cannot be covered with drywall or other surface material.

How do you install an old ceiling fan box?

Step 1: Loosen Box. Use a knife (not a saw) to cut through the drywall or plaster around the old box.
Step 2: Pry Box.
Step 3: Remove Box and Cable.
Step 1: Install Brace.
Step 2: Tighten Brace and Bolt.
Installing a New Box from Above.
Screw the Fan Bracket to a Ceiling Joist.
Pancake Box.
