How does motor shield work?

The Arduino Motor Shield allows you to easily control motor direction and speed using an Arduino. By allowing you to simply address Arduino pins, it makes it very simple to incorporate a motor into your project. It also allows you to be able to power a motor with a separate power supply of up to 12v.

Also know, how do you power a motor shield?

If you would like to have the Arduino powered off of USB and the motors powered off of a DC power supply. Plug in the USB cable. Then connect the motor supply to the power terminal block on the shield. Do not place the jumper on the shield.

Also Know, what is the difference between motor shield and motor driver? A motor driver is a chip that drives motors. A motor shield is a circuit board with connections on it that contains a motor driver chip that drives motors.

Correspondingly, what is a motor driver shield?

The Motor Shield is a driver module for motors that allows you to use Arduino to control the working speed and direction of the motor. Based on the Dual Full-Bridge Drive Chip L298, it is able to drive two DC motors or a step motor.

Can an Arduino power a motor?

You do NOT (ever) power a motor with an Arduino because it cannot provide enough current for a motor. But you can control a motor with an Arduino through a suitable motor driver board. You need to choose a motor driver that can supply the current required by your motor and work at the appropriate voltage.

How does l293d motor driver work?

How Motor Driver Operates? The L293D IC receives signals from the microprocessor and transmits the relative signal to the motors. It has two voltage pins, one of which is used to draw current for the working of the L293D and the other is used to apply voltage to the motors.

Can I power an Arduino Uno with 12v?

The board can be supplied with power either from the DC power jack (7 - 12V), the USB connector (5V), or the VIN pin of the board (7-12V). Supplying voltage via the 5V or 3.3V pins bypasses the regulator, and can damage your board.

What is l293d motor shield?

L293D Motor Driver Shield. The Arduino Motor Shield is based on the L293D, which is a Half-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. You can also measure the motor current absorption of each motor, among other features.

What are stepper motors good for?

Stepper motors are good for three things—positioning, speed control, and generating low-speed torque. With their precise incremental movement, stepper motors allow excellent control of their rotational speed suitable for robotics and process automation.

What is a motor driver board?

A motor driver board is just a convenient way of creating what is known as a "H Bridge". This is an arrangement of 4 (or more, but 4 primary) transistors. With a single transistor you can turn the motor on and off (or vary the speed if you use PWM) but that is all.

What is stepper motor and how it works?

A stepper motor is an electromechanical device it converts electrical power into mechanical power. The stepper motor uses the theory of operation for magnets to make the motor shaft turn a precise distance when a pulse of electricity is provided. The stator has eight poles, and the rotor has six poles.

How do I power my Arduino Motor Shield?

If you would like to have a single DC power supply for the Arduino and motors, simply plug it into the DC jack on the Arduino or the 2-pin PWR_EXT block on the shield. Place the power jumper on the motor shield. If you have a Diecimila Arduino, set the Arduino power source jumper to EXT.

How do you drive a DC motor using l293d with Arduino?

Place the L293D in the center of the breadboard, with half of the pins on either side of the breadboard. Connect 5V to Enable 1 , Vss , and Vs on the L293D. Connect digital output pins (we're using 6 and 7) to input 1 and input 2 on the L293D. Connect your Arduino's GND to both GND pins on the same side of the L293D.

What is H bridge IC?

An H bridge is an electronic circuit that switches the polarity of a voltage applied to a load. These circuits are often used in robotics and other applications to allow DC motors to run forwards or backwards.

How do I run an Arduino engine?

Connection Steps

Connect 5V and the ground of the IC to 5V and the ground of Arduino, respectively.
Connect the motor to pins 2 and 3 of the IC.
Connect IN1 of the IC to pin 8 of Arduino.
Connect IN2 of the IC to pin 9 of Arduino.
Connect EN1 of IC to pin 2 of Arduino.
Connect SENS A pin of IC to the ground.

Why are motor drivers needed?

Motor drivers acts as an interface between the motors and the control circuits. Motor require high amount of current whereas the controller circuit works on low current signals. So the function of motor drivers is to take a low-current control signal and then turn it into a higher-current signal that can drive a motor.

Which motor driver is best?

So check out this list of 10 best motor drivers for arduino and let us know your favourite arduino driver in the comments section.

Seeedstudio Motor Shield V2.
SainSmart L298N Dual H Bridge Motor Drivers For Arduino (9.99$)
Arduino Motor Shield R3(49.95$)
Sabertooth Motor Driver 12A(89$)

Why do you need a motor controller?

A Motor Controller is a device that acts as intermediary between your robot's microcontroller, batteries and motors. A motor controller is necessary because a microcontroller can usually only provide roughly 0.1 Amps of current whereas most actuators (DC motors, DC gear motors, servo motors etc.) require several Amps.

Do I need a motor shield for Arduino?

You don't need this shield to drive servo motors, they have their own controller, you need just a 5V power line, GND and digital output pin to generate a PWM and that's it. Usually Arduino has enough power to drive servo motors. This shield you are talking about is used for DC (direct current) and stepper motor.

How do I choose a motor controller?

Choosing a Motor Controller

The first consideration is the motor's nominal voltage.
Once you have found a range of controllers that can power the motor with the appropriate voltage, the next consideration is the continuous current the controller will need to supply.
The Control method is another important consideration.

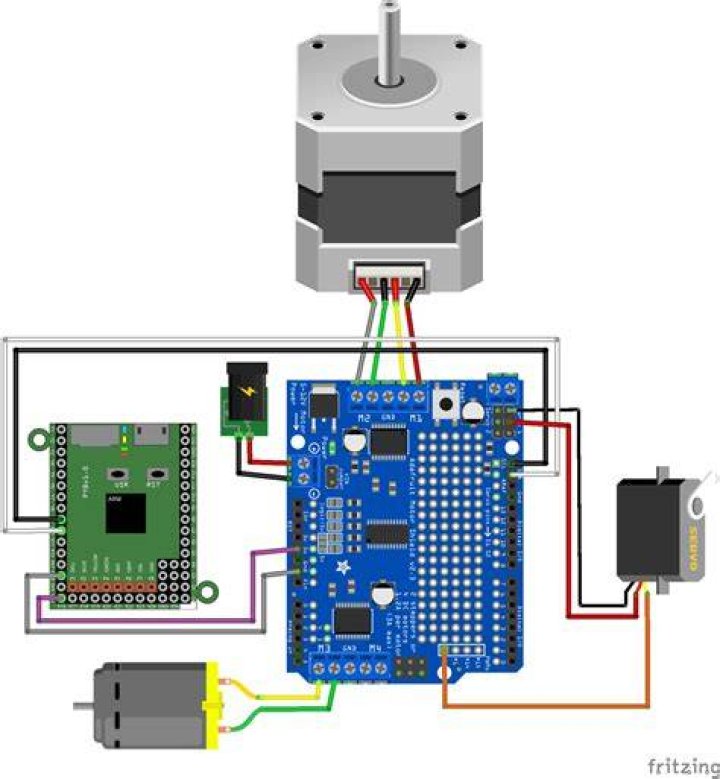

What is Adafruit Motor Shield?

The Adafruit Motor Shield is a great and quick way to control DC motors, servos or even stepper motors. It has the capability of controlling up to 2 stepper motors, 4 DC motors. and 2 servos.

What is a motor speed controller?

Motor speed controllers are electronic devices that control motor speed. They take a signal for the needed speed and drive a motor to that speed.

What does a DC motor controller do?

Simply put, a DC motor controller is any device that can manipulate the position, speed, or torque of a DC-powered motor.

What is DC motor drive?

DC Motor Drives. Definition: The DC motor drive is a type of amplifier or power modulator that integrate between the controller and a DC motor. It takes the low current and then converts it into a high current which is appropriate for the motor.
