How many amps does a 220 stick welder draw?

A 220v welder will take about half the amperage of a similar 110v welder. 90-100 amps is fairly common, but you can find smaller (and larger) welders. An air compressor will probably take a lot less current, maybe 20-30 amps for 220v or 20-50 amps for 110v.

Similarly, you may ask, how many amps does a stick welder use?

A: A 225- to 300-amp stick machine handles almost anything the average person will encounter, as most stick welding procedures require 200 amps or less. To weld material thicker than 3/8 inch, simply make multiple passes — this is what professionals do, even when welding on 1-inch structural steel.

Likewise, how many amps does a Lincoln 225 Welder pull? The Lincoln Electric AC225S Arc Welder features a broad welding amperage range of 40 Amp - 225 Amp for versatile use.

Also asked, what size breaker do I need for a 220 welder?

It's always best to size welder circuits and wiring based on the input current requirements of the welder. For example, 240-volt, 40- to 50-input amp welders will require a 50-amp circuit breaker and 6-gauge wiring. Welders operating at 30 to 40 input amps require a 40-amp breaker and 8-gauge wire.

How many amps does a MIG welder draw?

For small welders that run on 115 volts can produce up to 140 amps and will weld up to 1/4″ thick steel. For 220 volt welders, you can expect around 200 amps and weld up to 1/2″ material.

How thick can a 70 amp welder weld?

The Campbell Hausfeld WS0970 115-volt 70 Amp arc stick welder can weld mild or stainless steel from 18-gauge to 1/8-inch thick, and is ideal for use on boat trailers, wrought iron, or automotive sheet metal.

How do I know what amp to weld at?

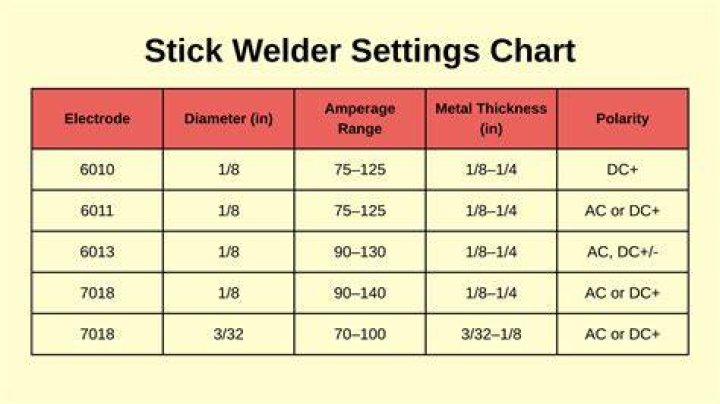

The specific amperage to be used depends primarily on the diameter of the electrode. For example, an eighth in diameter electrode welds great between 75 and 125 amps. Whereas a 5/32 diameter electrode can weld optimally at up to 220 amps.

Why does my welding rod keep sticking?

If you're welding with amperage set too low, your electrode will be especially sticky when striking an arc, the arc will keep going out while maintaining the correct arc length or the arc will stutter. A sign of too much current is when the electrode becomes hot enough to glow.

How many amps does it take to weld 3/8 steel?

225 amps

How many amps does it take to weld 1/2 inch steel?

Re: 1/2 steel to 1/2 inch steel welding questYou really need a big mig to weld thick plate. Doing it with a 180 amp is just tacking.

How many amps does it take to weld a 3/16 Steel?

Limit the amperage on 1/8" 6013 to 125 amps as already suggested. With 3/16" metal, I would start at 100-110 amps since 6013 does not penetrate like 6011.

How many amps is a 3/32 welding rod?

If you have no manufacturer's recommendation handy, there are some general amperage settings you can try. If using a 7018 rod of 3/32-inch diameter, the amperage should be around 50 amps on 1/16-inch thick steel and around 90 amps for 1/8-inch steel.

How do you stick weld uphill?

Hold the electrode slightly uphill, and keep a short arc to gain better penetration and fusion. During a weave, focus on welding the sides of the joint. Pause briefly at the sides to allow the bead below to cool and the lower shelf to form. Watch the puddle closely to make sure the slag drips off the shelf.

What size breaker do I need for a 250 amp welder?

For a 250-amp circuit breaker, this means a magnetic trip adjustment range of 1000 to 2000 amps. The KVA ratings on the nameplates of the welding transformers are in accordance with the RWMA standards for resistance welding transformers.

What size breaker do I need for a stick welder?

The circuit breaker that is most often used on welder installations is a double pole 60 amp size (in which case the feeder conductors must be sized accordingly) although the 50 amp size is usually more than adequate to serve the light-duty work for which most workshop units are used.

How thick of metal can a Lincoln 225 Weld?

But if you need to weld materials from about 1/8”-thick to “and heavier” metals, the Lincoln AC-225 Welder just might be for you.

Can I plug a welder into a regular outlet?

Electrical Set Up for Welding at HomeMany welders recommend starting home projects with a Millermatic 141 MIG welder since it doesn't require more than 120V and runs fine on most home electrical outlets. For a 220V welder, an electrician will have to install a plug that can handle the extra amperages it requires.

How do you wire a 220 outlet to a welder?

Install A 220v Outlet For Your Welder

Before you touch anything else, turn off the main power to the breaker box.
Remove the metal cover to gain access to the breakers.
On the breaker side of the wire, connect a hot wire to each screw on the breaker and snap the breaker into the box.

What gauge wire do I need for 220 volts?

If you're wiring a 220v, 20-amp outlet to run power tools, you can use the same 12-gauge wire you would use for a 110-volt, 20-amp circuit. Remember that the cable must have an extra hot wire. If the appliance draws 30 amps, you need a different type of receptacle, and the cable needs to be 10-gauge.

What size wire should I use for a 50 amp breaker?

Fifty-amp Copper WireNo. 6 copper wire can support up to 55-amp at a temperature of 60 degree Celsius. No. 6 wire is strongly recommended.

How do you size a circuit breaker for a welder?

e.g. Welder plate says max draw is 50 amps, then breaker must be a minimum of 50 amps to a maximum of 100 amps. Wire size for welders may be reduced from the maximum amps drawn by the device according to duty cycle. e.g. Welder plate says max draw is 50 amps and max output is 225 amps at 20% duty cycle.

Will 8 gauge wire carry 50 amps?

Scott, 8 AWG may carry a maximum of 70 Amps in free air, or 50 Amps as part of a 3 conductor cable. Please Note: Speedy Petey is a non-member guest and is in no way affiliated with InterNACHI or its members. David, if that cable is NM (Romex) then it actually cannot carry 50 amps.

What wire do I use for a 50 amp breaker?

The minimum wire gauge for a 50-amp breaker is eight gauge, and if the current draw is expected to remain close to the 50-amp limit for an extended period, you should use six-gauge wire.

What size breaker do I need for a Lincoln 225 AC welder?

To get full output (225 amps) from the Lincoln AC225 you require a 50amp breaker. For normal welding with say 1/8 inch electrodes I'd say you need at least a 30 amp breaker - better with a 40.
