Is a ground wire necessary?

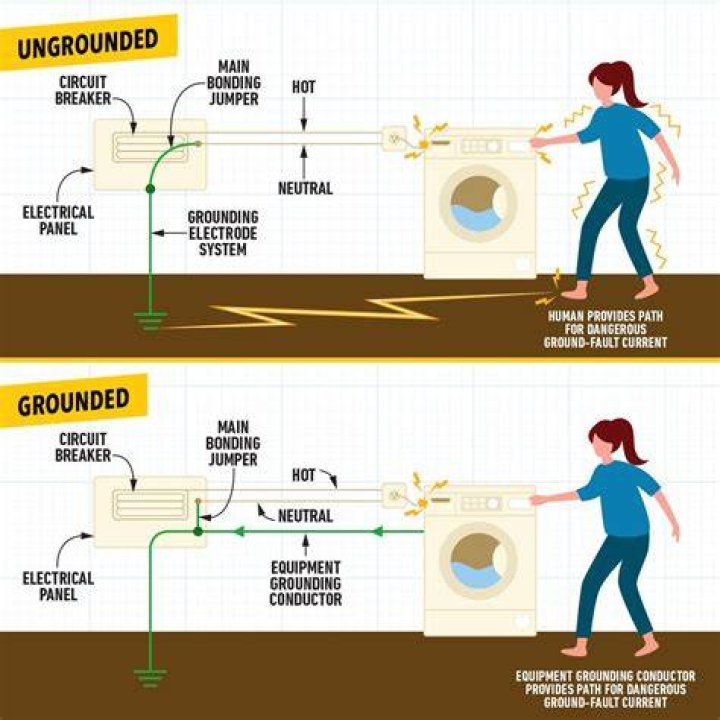

Is the ground wire necessary? The appliance will operate normally without the ground wire because it is not a part of the conducting path which supplies electricity to the appliance. If the case is grounded, a high current should flow in the appliance ground wire and trip the breaker.

Also asked, how important is a ground wire?

One of the most important reasons for grounding electrical currents is that it protects your appliances, your home and everyone in it from surges in electricity. If lightning was to strike or the power was to surge at your place for whatever reason, this produces dangerously high voltages of electricity in your system.

Also, what if I don't have a ground wire? If the box is not grounded, you have two choices:

Run a ground to the box. This would mean running a new wire back to the panel (could be bare copper, but if you're doing the work may be better just to run a new wire - 14/3 would be the best), which could mean opening up drywall.
Wire the fan without ground.

Furthermore, is it OK not to connect ground wire?

Not having that may kill people. If your electric appliance has ground wire it is because there is at least a remote possibility of you get an electric shock in case of electric appliance fail. Engineers won't add that ground wire unless it is necessary.

Do you need a ground wire for a light?

Your new light fixture will have a ground wire (green coated or bare copper). But if you have an older metal box, there may not be a ground wire inside the box to connect to. If the light glows, the box is grounded. If not, a ground wire will need to be run to the box to meet electrical code.

Does a ground wire carry current?

In any electrical circuit, there are two wires needed to complete any circuit. The grounding wire does not carry electricity under normal circuit operations. It's purpose is to carry electrical current only under short circuit or other conditions that would be potentially dangerous.

What happens if you don't ground a light switch?

Going without a ground wireWhen you screw the light switch in, it will make contact with the box, and as long as the box is grounded, it will pick up ground that way. If the box isn't grounded, the switch will still work.

Do you have to ground a metal junction box?

No, you do not have to attach a grounding wire directly to the metal enclosure if you are just using it as a pull point and you are otherwise grounding it using continuous runs of EMT.

Do you have to ground a metal outlet box?

The only requirement is that the application is grounded. Metal-sheathed wiring depends on bonding with the metal electrical box for grounding. Using metal-sheathed wiring with plastic electrical boxes, without taking other grounding measures, severs that ground and is highly dangerous.

Where does the ground wire go in a plastic box?

Because they are plastic, there is no need to attach a ground wire to it. Since it is made of a non-conductive material, switches and outlets cannot short out if they touch the side of the box. Plastic boxes usually come with tapped screw holes for easy attachment of switches and outlets.

Can I install a 3 prong outlet without ground?

3-prong outlets without ground are legal if they are GFCI protected, with "GFCI protected" and "No equipment ground" stickers.

How do you fix an ungrounded outlet?

The ideal way to repair an ungrounded 3-prong outlet is to establish a continuous electrical path back to the main panel. If the outlet is installed in a metal box and that metal box has metal conduit wiring (BX cable) all the way back to the panel, then you can ground your outlet with just a little work.

How do you ground an ungrounded outlet?

How to Ground an Ungrounded Outlet

Turn off the power supply to the house by flipping the main breakers or having the power company disconnect the meter.
Remove the retaining screw from the outlet cover.
Remove the wire from the outlet back to the breaker panel.
Run a length of two-conductor wire from the breaker panel to the outlet.

How do you add ground to old wiring?

To add a ground wire to your home, you need a breaker box with a ground bar + a ground rod + a wire between the two. This part is not such a problem. To take advantage of it, you need 3 wires run from the breakers to 3-prong outlets in your home. This part will cost you a ton in terms of rewiring.

How do I know if my electrical box is grounded?

If you perform the test with a pig-tail tester and the light doesn't light up when you touch the hot wire to the box, the box is not grounded (or you're not touching a hot wire). In this case, you could run a ground wire back to the panel, or you could replace your two-prong outlet with a GFCI outlet.

Can you use GFCI without ground?

The statement that a GFCI will not work without an equipment grounding conductor is just not true. A GFCI does not need a ground wire in order to trip properly. A GFCI simply trips when a fault is detected on the neutral wire. An ungrounded outlet will not trip using your tester.

Will a light work if not grounded?

If the fixture is out of reach, the lack of a ground is probably a low risk. If it is a pull chain light, use of a string pull rather than metal is a good idea. Yes, if you have a metal light fixture your fixture needs to be grounded. The ground wire exits your junction box, but it is not attached to your junction box.

What does a ground wire look like?

The white wire is the "neutral" wire, which takes any unused electricity and current and sends them back to the breaker panel. The plain (or it can sometimes be green) wire is the "ground" wire, which will take electricity back to the breaker panel, then outside to a rod that's buried in the ground.
