What is a #5 rebar?
Alexander Torres general
The primary applications of #5 rebar include pre-cast masonry for use in highway and bridge construction, as well as foundation grade beams, footings and tilt-up walls. In metric circles, this 5/8 inch rebar grade is known as “16MM.” Rebar is made from an extremely strong carbon-steel composite.
.
Similarly, how thick is a #5 rebar?
Rebar Weight
| Rod Number | Rod Size (in) | Rod Weight (lb per linear foot) |
|---|---|---|
| 2 | 0.250 = 1/4" | 0.17 |
| 3 | 0.375 = 3/8" | 0.38 |
| 4 | 0.500 = 1/2" | 0.67 |
| 5 | 0.625 = 5/8" | 1.04 |
Similarly, what is the difference between #4 and #5 rebar? It's actually quite easy. The number represents a unit of 1/8 of an inch. So that means a #4 rebar is 4 times 1/8" or in other words - 1/2". #5 bar is 5/8"; #6 bar is 3/4" and so on.
Similarly, what is a #4 rebar?
#4 Reinforcing Bar. In particular, #4 reinforcement steel is used to pave roads and highways, and in certain climates, it can also be used to build swimming pool frames. It is often trusted as a strengthening material in slabs, piers, columns, and walls. This 1/2 inch rebar grade is known as “13MM" in the metric system
What are the rebar sizes?

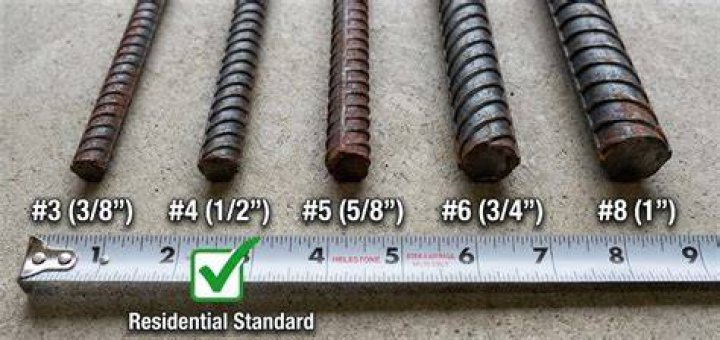

In the United States, rebar is given a number — #3, #4, #5, etc. — that reflects its solid diameter. The #3 bar is 3/8″ diameter of the solid section, #4 is 4/8″ or 1/2″, #5 is 5/8″ diameter.
Related Question Answers
Do you need rebar for 4 inch slab?
A concrete slab reinforced with rebar or welded wire fabric should have a minimum 1 1/2 inches of clear cover between the reinforcing and the top of the slab. On grade you can get away with welded wire fabric in most instances. Suspended slabs almost always require rebar reinforcing.Can rebar be welded?
In general, only steel rebar that is “Grade W” can be welded. Rebar that is not produced to the ASTM A706 specification is generally not suitable for welding without calculating the “carbon-equivalent”. Material with a carbon-equivalent of less than 0.55 can be welded (AWS D1. 4).What is the thickest rebar?
#18 Rebar. Reinforcing bar or “rebar” is available in a complete range of standard sizes, and #18 rebar is one of the largest and strongest.What size is number 5 rebar in inches?
Physical Characteristics of #5 Rebar:Weight per unit length: 1.043 pounds per foot (1.556 kilograms per meter) Nominal diameter: 0.625 inches (15.875 millimeters) Nominal area: 0.31 square inches (200 square millimeters)Do I need rebar in concrete slab?
Not all surfaces need concrete rebar reinforcement, but adding it makes concrete stronger and more resistant to large cracks. Without rebar reinforcement, concrete is highly prone to cracks due to tension forces. Rebar helps prevent cracks from growing wider largely by preventing cracked slabs from moving apart.What size is #10 rebar?
Physical Specifications of #10 Rebar:Weight per unit length: 4.303 pounds per foot. Nominal diameter: 1.27 inches.What size is #7 rebar?
Physical characteristics of #7 Rebar:Weight per unit length: 2.044 pounds per foot (3.049 kilograms per meter) Nominal diameter: 0.875 inches (22.225 millimeters) Nominal area: 0.6 square inches (387 square millimeters)What diameter is #3 rebar?
Physical Characteristics of #3 Rebar:Weight per unit length: 0.376 pounds per foot (0.561 kilograms per meter) Nominal diameter: 0.375 inches (9.525 millimeters) Nominal area: 0.11 square inches (71 square millimeters)Do they cut rebar at Home Depot?
The answer is yes, just ask an associate in the building department to cut the rebar in half for you. However if all you need is a 10 foot piece, your local Home Depot should stock 10 foot pieces. Just visit you local Home Depot and have an associate show you the different size rebar available.Does Home Depot carry rebar?
Rebar & Remesh - Concrete, Cement & Masonry - The Home Depot.How is rebar sold?
Steel reinforcing bars, known as rebar, are most commonly used to provide structure and tension support in concrete structures. Rebar generally costs about $0.75 per foot with slight price variations for thinner or thicker sticks. Usually sold in 2-foot lengths, prices can range from $1.40 to $1.84.How do you lay rebar?
Steps- Plan the project.
- Purchase the rebar.
- Consult your reinforcing placement drawings/plan.
- Choose the method you will use to tie the rebar.
- Prepare the area where the concrete is to be placed.
- Decide whether the concrete forms will be installed prior to placing your rebar.
- Shake out the rebar.
- Tie your rebar.
