What is foam deluge system?
Joseph Russell general

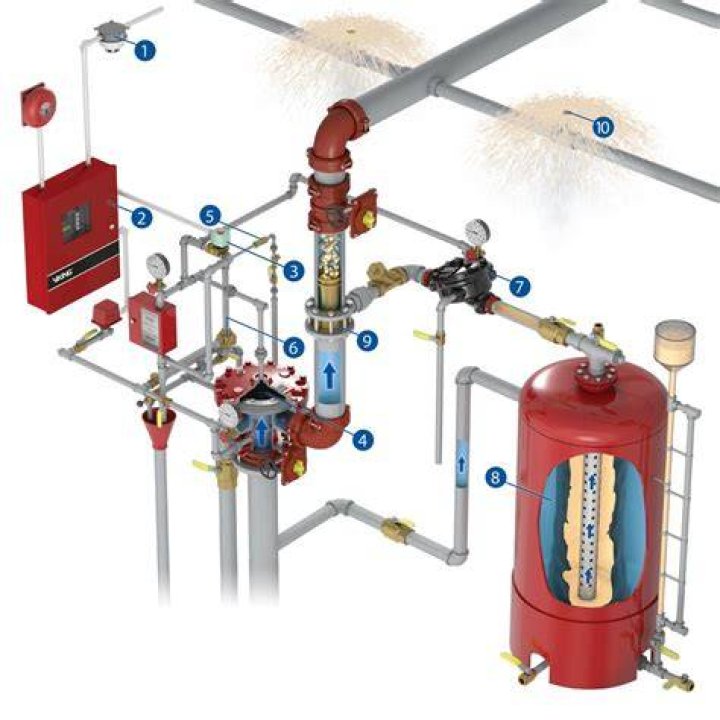

Foam Deluge Fire Supression SystemsThis type of fire sprinkler system controls burning flammable liquids and natural gas using a mixture of foam and water. It also forms a blanket that prevents oxygen from getting to the fire and suppresses the release of flammable vapors that could ignite in the air.
.
Also asked, what is a deluge system used for?
A deluge fire sprinkler system is similar to a pre-action system except the sprinkler heads are open and the pipe is not pressurized with air. Deluge systems are used in places that are considered high hazard areas such as power plants, aircraft hangars and chemical storage or processing facilities.
what is meant by deluge system? A deluge system is a water mist system using open spray heads attached to a piping system that is connected to a water supply through a valve that is opened by means of a detection system installed in the same area as the spray heads.
Correspondingly, what is foam system?
Foam systems are provided wherever there are large quantities of liquid hydrocarbons that pose a high fire risk. Foam is an aggregate of water, chemical compounds, and air-filled bubbles that float on the surface of combustible liquids to prevent vapor formation.
What is the difference between deluge and sprinkler system?
The main difference between a deluge sprinkler system and any other sprinkler system is the sprinklers themselves. The sprinkler heads in wet pipe systems, dry pipe system, and even pre-action systems all remain closed unless they detect heat from a fire. A deluge system, however, has open sprinkler heads at all times.
Related Question Answers
How does deluge work?
A deluge fire protection system has unpressurized dry piping and open sprinkler heads. The system is directly connected to a water supply and when the system is activated, a deluge valve will release the water to all the open sprinkler heads. The valve is opened when activated by a heat or smoke detection system.What is hydrant system?
Fire hydrant pump systems (also known as fire pumps, hydrant boosters, fire water pumps) are high pressure water pumps designed to increase the fire fighting capacity of a building by boosting the pressure in the hydrant service when mains is not enough, or when tank fed.What is deluge testing?
Deluge testing is a costly business; Wet testing causes corrosion and/or salt crusting and growth of organisms in flow pipes and nozzles; Spray of sea water over the entire production facility is a hazard for the expensive processing equipment; During testing the production process of oil and gas will come to a halt.Which liquid is used in fire sprinkler bulb?
In some sprinklers, the plug is made of an alloy called Wood's metal, a mixture of bismuth, lead, tin, and cadmium that melts at a relatively low temperature. In other sprinklers, the plug is a small glass bulb full of a glycerin-based liquid designed to expand and shatter when it gets hot.What are fire hydrants used for?
A fire hydrant is simply a point where people are able to tap into a water supply. The most common use for them is to assist firefighters in putting out fires.Why is fire sprinkler water black?
Basically, the poor unsuspecting helper opens up a pipe, or pulls a fire sprinkler that has some trapped water behind it. The water in older systems tends to stagnate and the water in the pipe will become a thick black, smelly, sludge. The smell is hydrogen sulfide which is present in all stagnant water.What is pre action system?
A pre-action sprinkler system is basically a hybrid between different sprinkler systems, particularly wet and dry-pipe systems. But, predominantly, it uses the concept of a dry-pipe sprinkler system in that water is not readily available in the piping system until triggered by smoke or heat sensors.What temperature will set off a fire sprinkler?
Each individual sprinkler head is triggered automatically when the air rising to the ceiling reaches a fire-specific temperature of 155 to 165 degrees. Often, only one or two sprinklers are required to fully extinguish a building fire.How many types of foam are there?
Types of Foam: Different Foam Mattresses SummaryLate foam, Polyurethane foam and Memory foam: these are the three basic types of foam used to manufacture mattresses. They also enable manufacturers to add some of the design aspects of the mattress itself.What is a benefit of class A foam?
Class A Foam Benefits: Reflects radiant heat and is highly visible. Insulates fuels and excludes oxygen. Absorbs maximum BTU's due to its large surface area. Penetrates water into fuels because of its low surface tension.How many basic types of foam are there?
As you shop, it's important that you understand that there are three primary types of memory foam.Is Class A foam toxic?
Toxic firefighting foams fall into two main categories, Class A and Class B. Class A foams are used to extinguish fires caused by wood, paper, and plants, and they generally do not contain PFAS chemicals.How does foam extinguish fire?
How Does Foam Extinguish The Fire. Foam extinguishes Class A Fires by cooling the burning material and removing the heat from the combustion triangle. Foam extinguishes Class B Fires by covering the flammable liquid with a foam blanket, thus cutting off the oxygen supply from the combustion process.How long is AFFF foam good for?
The effective life of CHEMGUARD C3B Concentrate can be maximized through optimal storage conditions and proper handling. CHEMGUARD foam concentrates have demonstrated effective firefighting performance with contents stored in the original package under proper conditions for more than 10 years.What is protein foam made of?
Protein firefighting foam concentrates are formulated with naturally occurring hydrolyzed proteins, in combination with foam stabilizers, bactericides, corrosion inhibitors, anti-freeze additives, and solvents. Protein-based firefighting foams provide a robust foam blanket for Class B fire and vapor suppression.Which is an advantage of compressed air foam?
Because foam is a more efficient extinguishing agent than water, it allows firefighters to extinguish the fire quicker, which decreases their exposure time. Second, the high energy of a CAF stream provides a longer reach, allowing firefighters to operate farther away from the incident in a safer location.What are the 4 types of fire extinguishers?
There are four classes of fire extinguishers – A, B, C and D – and each class can put out a different type of fire.- Class A extinguishers will put out fires in ordinary combustibles such as wood and paper.
- Class B extinguishers are for use on flammable liquids like grease, gasoline and oil.
