What is pipe earthing?

Pipe earthing refers to usage of Pipe as a primary conductor for dissipating fault currents in electrical systems. Usually, GI pipes of Class B category are used along with loads of coal and salt. These days, the strip in pipe or Pipe in Pipe earthing electrodes are also referred to as Pipe earthing.

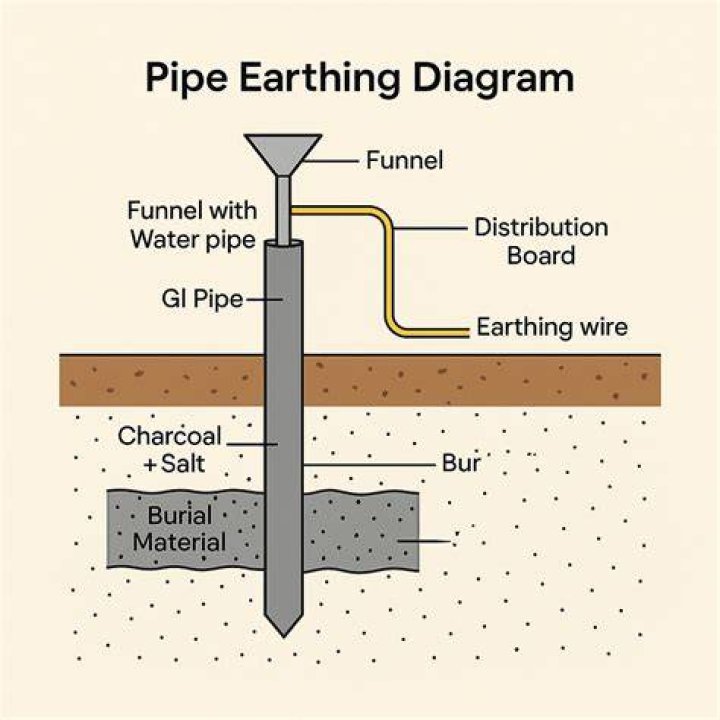

Correspondingly, what is pipe earthing with diagram?

Pipe Earthing: A galvanized steel and a perforated pipe of approved length and diameter is placed vertically in a wet soil in this kind of system of earthing. It is the most common system of earthing. The size of pipe to use depends on the magnitude of current and the type of soil.

One may also ask, which electrode is used for pipe earthing? Copper pipe is commonly used as earthing pipe.

One may also ask, how is pipe earthing done?

Earthing Through Water Mains In this type of earthing the GI or copper wire are connected to the water mains with the help of the steel binding wire which is fixed on copper lead as shown below. The water pipe is made up of metal, and it is placed below the surface of the ground, i.e. directly connected to earth.

Which is better pipe earthing and plate earthing?

Generally Pipe Earthing are used in electrical system while plate earthing is in Electronic system. From the above calculation the GI Pipe electrode offers a much lesser resistance than even a copper plate electrode. As per IS 3043 Pipe, rod or strip has a much lower resistance than a plate of equal surface area.

What is the difference between earthing and grounding?

The key difference between earthing and grounding is that the term “Earthing” means that the circuit is physically connected to the ground which is Zero Volt Potential to the Ground (Earth). Whereas in “Grounding” the circuit is not physically connected to ground, but its potential is zero with respect to other points.

Which type of earthing is mostly used?

The neutral earthing is also called the system earthing. Such type of earthing is mostly provided to the system which has star winding. For example, the neutral earthing is provided in the generator, transformer, motor etc.

Which wire is used in earthing?

Earthing Lead or Earthing JointEventhough copper wires are generally used as earthing lead, copper strips are preferred for high installation as it can carry higher values of fault current due to its wider area. Hard drawn bare copper wires are also used as earthing lead.

What type of earthing is used in homes?

Pipe earthing is the most common type of earthing. Similar to pipe earthing, rod earthing requires the burying of a rod made of copper or galvanised iron. Electrodes are embedded in the soil and thus decrease the resistance of the earth as required.

Which Colour wire is used for earthing?

green

What is earthing in physics?

Earthing is the process of transferring the immediate discharge of electricity directly to the earth plate, by means of low resistance electrical cables or wires.

Why salt is used in earthing?

The purpose of coal and salt is to keep wet the soil permanently. Coal is made of carbon which is good conductor minimizing the earth resistant. Salt use as electrolyte to form conductivity between GI Plate Coal and Earth with humidity. Sand has used to form porosity to cycle water & humidity around the mixture.

How is earthing connected?

An earth ground connection of the exposed conductive parts of electrical equipment helps protect from electric shock by keeping the exposed conductive surface of connected devices close to earth potential, when a failure of electrical insulation occurs. When a fault occurs, current flows from the power system to earth.

How do we get electricity from the Earth?

Ground (electricity)

In electrical engineering, ground or earth is the reference point in an electrical circuit from which voltages are measured, a common return path for electric current, or a direct physical connection to the earth.
Electrical circuits may be connected to ground (earth) for several reasons.

Where do you connect earthing wire?

The earth wire connects the appliance body to a metal rod/plate buried under the ground. A lot of mains powered appliances need three wires to work safely. Only two of the wires are used when the appliance works properly. These are the live (brown) and the neutral (blue) wires.

Who is responsible for earthing a property?

The property owner is responsible for ensuring they have internal earthing to protect their home and appliances inside their homes.

How do you check earthing?

Method 2Checking Earthing with a Multimeter

Set a multimeter to measure AC voltage.
Plug the red and black leads into the matching ports on the multimeter.
Take a reading while the leads are in the live and neutral ports of an outlet.
Check the voltage when the leads are inserted to the live and earthing ports.

What is earth continuity?

EARTH CONTINUITY TEST. This test is carried out on all Class I appliances during PAT Testing. The purpose of the test is to check that there is a good connection between the Earth pin on the plug and the case of the appliance. A good connection is defined as having a resistance of less than 0.1 ohms (or 100 milli-ohms)

Where is earthing rod used?

Earth rods and their fittings are used to provide the interface to ground in all soil conditions in order to achieve satisfactory earthing systems in overhead and underground electricity distribution and transmission networks – providing high fault current capacity on low, medium and high voltage substations, towers

How many types of earthing are there?

five types

Which chemical is used for earthing?

Earthing CompoundMarconite is the world's premium electrically conductive aggregate material – the synthetic material is manufactured specifically for use in earthing applications and unlike Bentonite, it is not a naturally occurring mineral or ore.

What is the difference between chemical earthing and conventional earthing?

What is the difference between chemical earthing and conventional earthing? Charcoal and Salt used, results in corroding the metal whereas in chemical earthing highly conductive Backfill compound is used. Earth resistance value fluctuates whereas in chemical earthing Least fluctuation in Earth resistance value.

What is the amount of charcoal and salt needed for GI pipe earthing?

When fault occurs the current has to dissipate to the soil, if the soil has higher resistivity then the dissipation will not happen properly. For proper dissipation we use salt and charcoal around the conductor: 5kg of salt is the normal amount, charcoal weight is 5kg or more.

Why is earthing required?

The primary purpose of earthing is to reduce the risk of serious electric shock from current leaking into uninsulated metal parts of an appliance, power tool, or other electrical devices. In a properly earthed system, such leaking/fault current is carried away harmlessly while tripping the fuse.
