What is silicon doped with?
Mia Horton updates

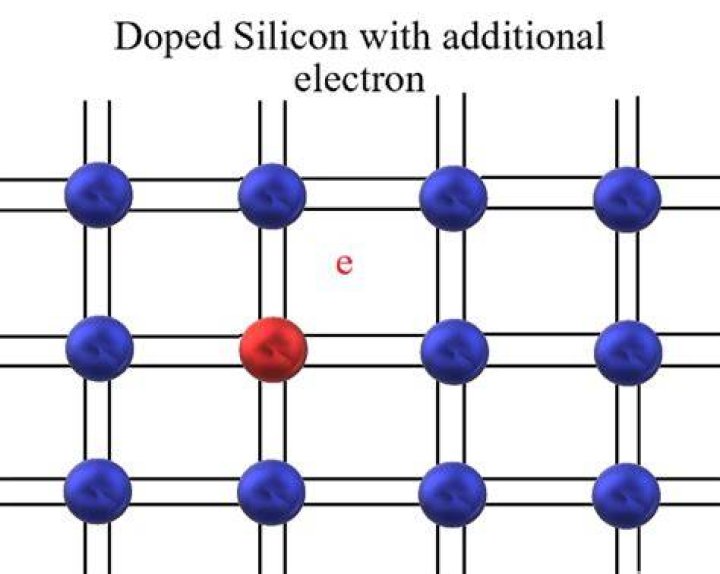

Doping means the introduction of impurities into a semiconductor crystal to the defined modification of conductivity. Two of the most important materials silicon can be doped with, are boron (3 valence electrons = 3-valent) and phosphorus (5 valence electrons = 5-valent).
.
Also know, how do you make doped silicon?
You can dope by melting the silicon but that's not the primary way. The two main ways are: Thermal Diffusion - basically heat the silicon wafers in a closed quartz tube, pump in some vaporized phosphorous, arsenic or boron and the dopants literally diffuse into the solid silicon.
Subsequently, question is, is Phosphorus n type or p type? Phosphorus and arsenic each have five outer electrons, so they're out of place when they get into the silicon lattice. Electrons have a negative charge, hence the name N-type. P-type - In P-type doping, boron or gallium is the dopant. Boron and gallium each have only three outer electrons.
Correspondingly, what are the two types of dopants?
Crystals of Silicon and Germanium are doped using two types of dopants:
- Pentavalent (valency 5); like Arsenic (As), Antimony (Sb), Phosphorous (P), etc.
- Trivalent (valency 3); like Indium (In), Boron (B), Aluminium (Al), etc.
What is the difference between silicon doped with gallium and arsenic?
On the other hand, Silicon replaces Arsenic it has 1 less electron and it will make it p-type. So, Silicon added to Gallium Arsenide can be either n or p-type and this type of doping is called amphoteric doping. The case of Gallium Arsenide the band gap is 1.42 electron Volts also mark the center of the gap.
Related Question Answers
What is p type and n type?
N-type semiconductors are created by doping an intrinsic semiconductor with donor impurities. A common dopant for n-type silicon is phosphorus. The term p-type refers to the positive charge of the hole. In p-type semiconductors, holes are the majority carriers and electrons are the minority carriers.How many types of semiconductors are there?
In this way two types of semiconductor are available: Electrons are negatively charged carriers.- N-type: An N-type semiconductor material has an excess of electrons.
- P-type: In a P-type semiconductor material there is a shortage of electrons, i.e. there are 'holes' in the crystal lattice.
How depletion region is formed?
Depletion RegionWhen a p-n junction is formed, some of the free electrons in the n-region diffuse across the junction and combine with holes to form negative ions. In so doing they leave behind positive ions at the donor impurity sites.What is a band in chemistry?
Definition of Solid State Band TheoryBecause of the very large number of atoms that interact in a solid material, the energy levels are so closely spaced that they form bands. The highest energy filled band, which is analogous to the highest occupied molecular orbital in a molecule (HOMO), is called the valence band.What is N type silicon?
N-Type (Negative)N-type silicon is silicon that has been chemically combined (doped) with phosphorus gas to make it conductive. A silicon atom has four electrons in its outer shell and bonds tightly with four surrounding silicon atoms creating a crystal matrix with eight electrons in the outer shells.Does Silicon conduct heat?
Unlike metals, which are good electrical and heat conductors, crystalline solids such as diamond and semiconductors such as silicon are good heat conductors but poor electrical conductors.When a piece of pure silicon is doped with Aluminium?
Silicon is having 4 electrons in its outermost orbit so it can make four bonds,but if it is having a unbounded electron as u are saying, & if you add aluminium to silicon crystal , as aluminium is having one electron deficiency which is fulfilled by unbounded silicon electron and it will become neutral and it willWhat is knee voltage?
The forward voltage at which the flow of current during the PN Junction begins increasing quickly is known as knee voltage. This voltage is also known as cut-in voltage. This voltage is the least reverse voltage at which the PN Junction can behave without harm to the current.Why is it called N type?
The outer shell of electrons is called the valence shell. This leaves one electron free. The resulting material has a large number of free electrons. Since electrons are negative charge carriers, the resultant material is called an n-type (or negative type) semiconductor.What is P type?
The term p-type refers to the positive charge of a hole. As opposed to n-type semiconductors, p-type semiconductors have a larger hole concentration than electron concentration. In p-type semiconductors, holes are the majority carriers and electrons are the minority carriers.What do you mean by dopant?
Definition of dopant. : an impurity added usually in minute amounts to a pure substance to alter its properties (such as conductivity)What is N type material?
An N-type semiconductor is a type of material used in electronics. It is made by adding an impurity to a pure semiconductor such as silicon or germanium. The impurities used may be phosphorus, arsenic, antimony, bismuth or some other chemical element.What is the difference between donor and acceptor impurities?
The key difference between donor and acceptor impurities is that the elements in group V of the periodic table typically act as donor impurities whereas elements in group III typically act as acceptor impurities. Doping is the process that adds impurities to a semiconductor.What is meant by depletion region?
Depletion region or depletion layer is a region in a P-N junction diode where no mobile charge carriers are present. Depletion layer acts like a barrier that opposes the flow of electrons from n-side and holes from p-side.What are the two types of semiconductor?
In this way two types of semiconductor are available: Electrons are negatively charged carriers.- N-type: An N-type semiconductor material has an excess of electrons.
- P-type: In a P-type semiconductor material there is a shortage of electrons, i.e. there are 'holes' in the crystal lattice.
