What is the Cal rating on clothing?
Joseph Russell news
Calories are the units of measure used to describe the force of an arc flash. So a CAL rating of 8.7, for instance, means that the garment in question will prevent injury when subjected to an arc flash of 8.7 calories or less. The goal of the rating is to help you choose the right clothing to keep you safe on the job.
.
Similarly one may ask, what is Cal rating?
The level of arc exposure is referred to as the ATPV/EBT and is measured in calories/cm² (often called a cal rating). Requires employees to wear flame-resistant clothing with a PPE category rating, equal to or greater than the determined arc hazard.

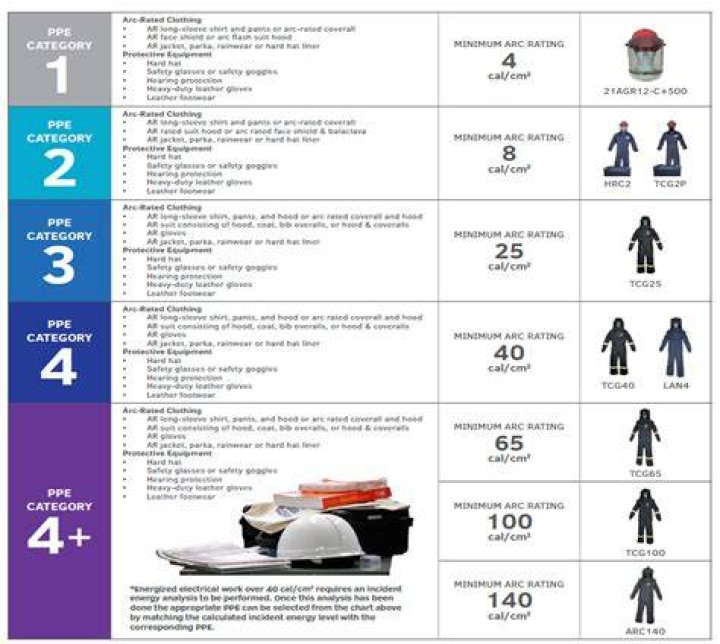

Subsequently, question is, what is a Cal rating for arc flash? NFPA 70E Hazard Risk Category Levels (HRC)
| Hazard Risk Category | Clothing Description | Minimum Arc Rating of PPE (cal/cm²) |
|---|---|---|
| HRC 3 | Arc Rated FR Shirt & FR Pants or FR Coverall; & Arc Flash Suit that Meets Minimum Arc Rating | 25 |
| HRC 4 | Arc Rated FR Shirt and FR Pants or FR Coverall; & Arc Flash Suit that Meets Minimum Arc Rating | 40 |
Correspondingly, what are HRC ratings for clothing?
HRC (Hazard/Risk Category): The chart, based on specific job tasks, ranges from HRC 1 (which is low risk and allows for 100% treated cotton), up to HRC 4 (which is high risk and requires FR clothing with a minimum arc rating of 40).
What does 4 Cal cm2 mean?
The ATPV is measured in cal/cm2, and it's defined as the maximum incident heat energy that a fabric can absorb and lessen the injury to a 2nd degree burn. If the worker is exposed to a potential incident heat energy level of less than 4.0 cal/cm2, the proper ATPV clothing system is 4 cal/cm2.
Related Question Answers
What does Arc Rated mean?
One common question we receive is “what is arc rated?” As it applies to flame resistant (FR) garments and personal protective equipment (PPE), arc rated means that the material has been tested for exposure to an electrical arc and assigned a value according to its performance.What does hrc2 mean?
Hazard Risk Category
What is arc resistant clothing?
All Arc Rated clothing is flame resistant; the official arc rating standard (ASTM 1959) requires fabrics be FR to even qualify for testing. Once an FR fabric is submitted for arc rating, 21 samples are subjected to arc flash, and sensors measure heat transfer through the fabric.What is a 40 cal suit rated for?
When you see an item that is marketed as a 40 cal arc flash suit, the number actually means that the suit is rated to protect against arc flashes with an incident heat energy level of up to 40 cal/cm2.What is arc flash PPE?
Arc Flash PPE OverviewPPE designed to protect against arc flash hazards is called arc-rated (AR) clothing. Depending on the hazards, workers may be required to wear as little as a long-sleeve shirt and pants made from untreated natural fiber, or as much as a full arc flash suit over other protective clothing.What is arc flash boundary?
The arc flash boundary is the minimum “safe” distance from exposed energized conductors or circuit parts that has the potential for an arc flash.How is arc rating derived?
The arc rating is expressed in cal/cm2 and is derived from the determined value of the arc thermal performance value (ATPV) or energy of break open threshold (EBT) (Should a material system exhibit a break open response below the ATPV value). Arc rating is reported as either ATPV or EBT, whichever is the lower value.At what voltage is arc flash a concern?
Most 400 V and above electrical services have sufficient capacity to cause an arc flash hazard. Medium-voltage equipment (above 600 V) is higher potential and therefore a higher risk for an arc flash hazard.What does HRC 3 mean?
HRC 3. Return to Glossary. Garments compliant to HRC (Hazard Risk Category) 3, as defined by NFPA 70E, 2012 edition, have an arc rating that is greater than or equal to 25 cal/cm², but are less than 40 cal/cm².What does NFPA 2112 stand for?
What is NFPA 2112? The National Fire Protection Association 2112 Standard provides minimum requirements for the design, construction, evaluation, and certification of flame-resistant garments for use by industrial personnel.What chemical is used in FR clothing?
The chemistry that Westex employs for the INDURA Ultra Soft line of flame resistant fabrics has been in commercial use for four decades. Westex began production with this type of technology over 30 years ago.Is hrc2 the same as Cat 2?
Short for Category. The most common categories are CAT 2 and CAT 4, but CAT 1 and CAT 3 also exist. The arc rating of a garment determines which CAT. Many FR and arc flash PPE companies have transitioned to using CAT to replace HRC.What does ATPV rating mean?
Arc Thermal Performance Value
How do you calculate HRC?
HRC level is determined by the minimum amount of calories per square centimeter (ATPV or Cal/cm2) a treated garment must pass through with a 50% probability of a 2nd or 3rd degree burn occurring, thus the protective level of the treated clothing.Which hazard risk category do you need to switch from a balaclava and face shield to an arc hood?
Hazard Risk Category II now has a provision that allows either an arc-rated arc flash suit hood or a face shield with a minimum arc rating of 8 cal/cm² and balaclava. Most electrical workers are between the ages of 30 and 50.What is the required arc rating of PPE a Hazard Risk Category 2?
8 cal/cm2
What is the required arc rating of PPE at Hazard Risk Category 2?
PPE Category 2: Minimum Arc Rating 8 cal/cmIn PPE CAT 2, workers need the following clothing: Required Clothing: Arc Rated Long Sleeve Shirt and Pants or Arc Rated Coverall with minimum arc rating of 8 cal/cm.What are the 4 types of PPE?
Types of personal protective equipment- Respiratory protection - for example, disposable, cartridge, air line, half or full face.
- Eye protection – for example, spectacles/goggles, shields, visors.
- Hearing protection – for example, ear muffs and plugs.
- Hand protection – for example, gloves and barrier creams.
