Where is the thermocouple in a gas oven?
Andrew Vasquez general
The thermocouple is a gas furnace component located near the pilot light burner. It is a safety device that shuts off the gas if the pilot light goes out or the electric igniter fails. If the pilot light won't stay lit, the thermocouple may be faulty and should be adjusted or replaced.
.
Similarly, how do you replace a thermocouple on a gas oven?
Take an adjustable wrench, loosen the nut, and remove the copper tubing from the gas regulator. The head of the thermocouple is installed at the end of the copper tube you just removed; this head is generally fitted near the oven's burner with a regular clip that has been screwed securely or with a gravity clip.
Likewise, how does a thermocouple work in a gas oven? A thermocouple is a safety device that's used to detect whether or not your furnace's pilot light is lit. It contains a metal rod that is placed very close to your pilot light's flame. If the pilot light goes out, the thermocouple will lose its voltage and the gas line to your furnace will be closed.
Keeping this in view, how do you clean a thermocouple on a gas oven?
Process
- Turn off the gas leading to your furnace.
- Open up furnace cover and look at the pilot light and thermocouple.
- Set both pieces on the towel (or some other soft surface which you can clean easily later.
- Use the wire brush to scrub the pilot light and thermocouple.
Does a gas stove have a thermocouple?
The safety valve depends on a thermocouple that sends a signal to the valve to stay open. Although most modern gas stoves have electronic ignition, many households have gas cooking ranges and ovens that need to be lit with a flame. Electric ignition stoves use electric sparks to ignite the surface burners.
Related Question Answers
How do you test a thermocouple on a gas oven?
Steps- Locate the pilot light controls on the gas valve.
- Turn the pilot light on for 30 seconds.
- Release the button to see if the pilot light goes out.
- Turn off the gas supply to test the thermocouple again.
- Count to 20 and wait for the pilot light to go out.
- Listen for clicking near the gas valve.
How long does a thermocouple last?
Thermocouples can last several years, but they don't typically last as long as the furnace itself. If the pilot remains lit, but the main furnace doesn't stay lit, it's time to replace the thermocouple.Will pilot stay lit if thermocouple is bad?
Nothing lasts forever, and when the thermocouple wears out, the pilot won't stay lit and your appliance won't work. The pilot can go out for a number of other reasons, however, so if you're having trouble getting the pilot to stay lit, the thermocouple may not be at fault.Are thermocouples universal?
Universal Thermocouples. Universal thermocouples, as the name implies work on most water heaters. They are available online and in home supply stores for a reasonable cost. The length and the thread type are the two concerns when purchasing one.Can you fix a thermocouple?
A burned out or broken thermocouple should be replaced. To replace a thermocouple: Step 1: Unscrew the copper lead and the connection nut inside the threaded connection to the gas line. Step 2: Under the mounting bracket at the thermocouple tube, unscrew the bracket nut that holds the tube in place.Can you clean a thermocouple?
If the Thermocouple is faulty it will cause the unit to shut down. How to clean? Remove Thermocouple from pilot assembly, using steel wool or emery cloth to lightly clean the tip removing any soot or build up that might have accorded due to an improper pilot flame.Why does my gas oven keep turning off?
If the appliance has a thermocouple, the problem may be a faulty thermocouple. The thermocouple, which operates as a safety device, turns the gas supply off when the pilot light goes out. When a thermocouple fails, the pilot light won't stay lighted. A burned out or broken thermocouple should be replaced.What does thermocouple look like?

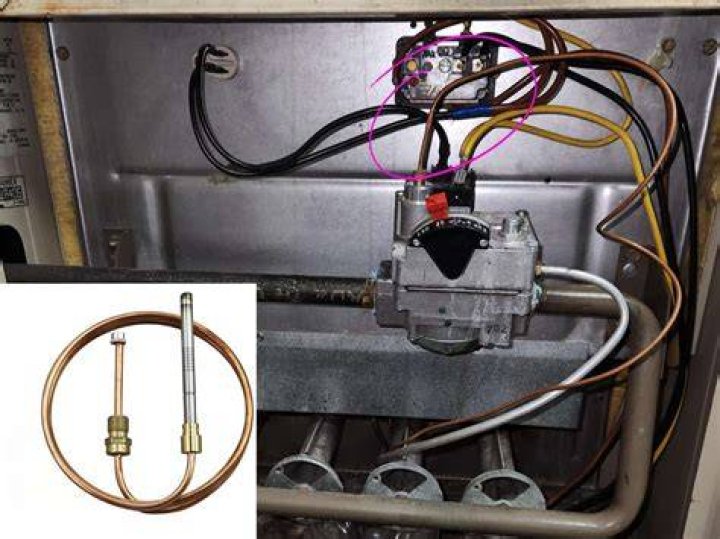

The thermocouple looks like a piece of metal tubing smaller than a soda straw. To find it, first locate the gas control box. This is the box that the main gas line enters, where you turn the gas on in the furnace. The other end of the thermocouple sits in the flame of the pilot light.How do you clean a gas oven igniter?
You may need to remove the bottom oven cover to expose the igniter. Clean the igniter with a toothbrush to remove dirt and debris. Gently scrub the surface of the igniter with the toothbrush and softly blow on it when finished to remove the debris. This will facilitate better sparking.How do you test a thermocouple?
How to Test a Thermocouple With a Multimeter- Remove the thermocouple from the appliance.
- Choose a test to assess the thermocouple.
- Select the ohms or resistance option on your multimeter.
- Turn your multimeter to millivolts to perform an open circuit test.
How do you unclog a gas stove?
Soak the sealed burner base in vinegar or warm water and use a stiff brush to remove any debris. Finally, clean any remaining debris out of the burner holes with a toothpick, sewing needle or compressed air. Reinstall the burner, cover and the grill, and try igniting the burner once more.How much does it cost to replace the thermocouple?
Thermocouple Replacement - $20-$150Calling a professional plumber to install a new thermocouple should only be up to $150. If you do the work yourself, you will only pay the price of the part which is about $20.How do you clean the pilot on a gas stove?
Turn all stove controls off. Then remove the small cap or cover on the pilot lights and clean away any residue. Clear the gas opening in the pilot light by poking a straight pin into the small gas hole. Scrub the tubes leading from the burners to the pilot with a strong detergent and a stiff brush.Do thermocouples wear out?
Thermocouples wear out and are replaceable, but you should conduct a few simple tests before doing that, because your gas pilot may be going out for another reason.How does a thermocouple work on a gas cooker?
The thermocouple in a gas furnace is designed to keep the gas valve open through its electric voltage. If the pilot light goes out, the loss in heat causes the voltage between the two pieces of metal to drop, and this shuts the valve and reduces the combustion risk.How does a thermocouple work?
A thermocouple is an electrical device consisting of two dissimilar electrical conductors forming an electrical junction. A thermocouple produces a temperature-dependent voltage as a result of the thermoelectric effect, and this voltage can be interpreted to measure temperature.Why do thermocouples fail?
The presence of oxygen causes a reaction in the thermocouple that can wear down the part and make the wires become thinner and more brittle. Oxidation can be caused by a small amount of oxygen making its way into a sealed environment and reacting with the pure metal of the thermocouple.What is the purpose of a thermocouple?
A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created.How many types of thermocouples are there?
Thermocouple Grade Wire
| Calibration Type | Temperature Range | |
|---|---|---|
| K | 32 to 2282°F | 0 to 1250°C |
| E | 32 to 1652°F | 0 to 900°C |
| T | 32 to 662°F | 0 to 350°C |
| R or S | 32 to 2642°F | 0 to 1450°C |
